HPSPP Break through Technology

Many industries use high pressure pumps for slurry transport or cutting. The higher the pressure, the higher the transport rate or the more effective the cutting efficiency; however current triplex pumps cannot handle slurries at high pressures due to extreme wear and shortened lives. For abrasive cutting, a slurry system is 400% more efficient than an air induced system. A 15,000 psi slurry system then, is as efficient as a 60,000 psi air induced system.

Pumping a mixture of abrasive solids suspended in a liquid (slurry) at high pressures and high velocities causes extreme wear on internal pump parts, necessitating frequent and expensive overhauls. Alternative methods utilize batch processes that are tedious and labor intensive. The standard air induced systems with downstream solids mixing, utilizing 2 nozzles, is significantly less efficient than slurry systems.

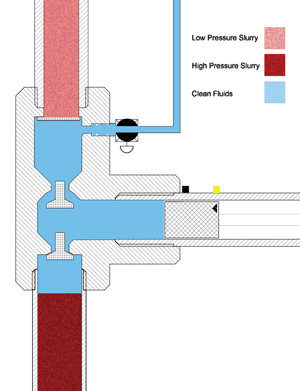

The IST solution is a patented process that injects a clean fluid into the pumping cycle that isolates the moving pump parts from the abrasive material and improved valving that extends the life 5-10 times that of standard piston pumps.









Impact Slurry Technologies LLC
HPSPP Products and Application

Pump 1

Hydraulically driven cylinders, with flow rates from 0 to 40 Gallons per Minute. Can be used for high pressure slurry jet cutting with applications in fixed job shop and field abrasive cutting and oil and gas well drilling, re-entry, directional drilling and lateral extension. Rated for 15,000 psi.

Pump 2

Modified triplex pump with flow rates from 0 to 20 Gallons per Minute. A versatile pump with a high turn down ratio usable in a number of industries and applications. Rated for15,000 psi.

Pump 3

Large modified triplex pump with flow rates up to 350 Gallons per Minute. Capable of pumping for oil and gas well hydraulic fracture stimulation and drill cuttings disposal. Rated for 15,000 psi.

Pump 4

Small modified triplex pump with flow rates from 0 to 5 Gallons per Minute. Ideal for small footprint shop and field portable cutting units and other various field industrial applications. Rated for 15,000 psi.

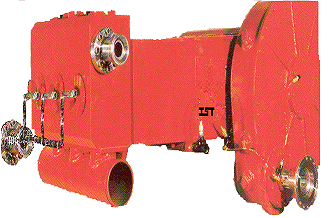

HPSPP modified Triplex







Impact Slurry Technologies LLC
Selected Applications for the HPSPP

Job and Machine Shops

  • Machining, fabrication and general job shop
    abrasive cutting

  • Replace problematic batch systems

  • Efficient and problematic (alignment and plugging)

  • Replace less efficient air induced systems

  • Expand shops capabilities with ASJ cutting
    technology

Oil, Gas, and Geothermal Wells

  • Hydraulic sand fracture stimulation of wells

  • ASJ Cutting for milling out of casing for directional and multilateral drilling

  • Extending Laterals to enhance production

  • Grass roots (surface to TD) microhole drilling to get high energy to the bit

  • Hard rock drilling that can not otherwise be drilled

  • Drill cutting disposal

Specialized Field Pumping for ASJ Cutting, Cements, Epoxies, Grouts and Tunneling

  • Modification or demolition of steel systems that contain explosive or flammable materials

  • Cutting of Highway or foundations thick reinforced (steel rebar) concrete layers

  • Long distance pipe, elevated or multi-story
    cementing

  • Multi-component slurry systems such as epoxies and fast setting cements where mixing at the last minute is vital



Impact Slurry Technologies LLC

Who we are:

IST is dedicated to bringing Abrasive Slurry Jetting (ASJ) technology to industry from the solids mixing, to the source base slurry pump, rate and pressure controls and the specialty nozzle or cutting tip.

What we believe:

The IST proprietary High Pressure Slurry Piston Pump (HPSPP) will revolutionize the slurry pumping industry, extending the life of comparable pumps by five to 10 times, and proving up to 400% more efficient cutting than air-induced cutting methods. IST will save your company capital and operating expenses.

What we do:

IST brings the full range of slurry technology to industry, including the cutting edge, patented High Pressure Slurry Piston Pump and related proprietary technology through the manufacturing of new pumps for a variety of applications, kits to modify existing pumps and complete cutting systems.
